AVRB絕緣扁形電線

AVRB

聚氯乙烯絕緣扁形電線

PVC insulated Flat Flexible Wire

標準 Standard: JB 8734.4--98

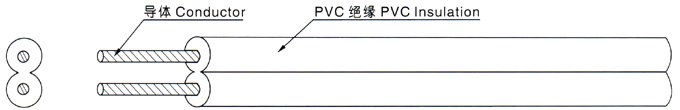

■ 構造 CONSTITUTION：

■ 產品說明

PRODUCT DESCRIPTION

●	Rated voltage: 300/300V，Rated temperature:70℃
●	Stranded, bare copper conductor, 0.12-0.4mm²
●	PVC insulation
●	Passes GB 18380.1 vertical flame test
●	Uniform insulation thickness of wire to wire to ensure easy stripping and cutting
●	Resistant to acids, alkalis, oils, moisture and fungi,conforming RoHS

■ 應用

適用于電器、儀表和電子設備及自動化裝置用安裝線

APPLICATION

For iwiring of electrical apparatus, meters, electronic equipments and automatic devices

AVRB 70℃ 300/300V
導體型號 Conductor Type	導體 Conductor			絕緣 Insulation			20℃較大導體電阻 Max Resistance at 20℃	70℃*小絕緣電阻 Min Insulation Resistance at 70℃	耐電壓 Dielectric Strength AC 5 min	標準 長度 Standard Length
	標稱截面 Nom. Area	線數/ 線徑	直徑 Dia.	標稱厚度 Nom. Thick.	標稱外徑 Nom.Dia.	較大外徑 Max. Dia	20℃較大導體電阻 Max Resistance at 20℃	70℃*小絕緣電阻 Min Insulation Resistance at 70℃	耐電壓 Dielectric Strength AC 5 min	標準 長度 Standard Length
	mm²	No./mm	mm	mm	mm	mm	Ω/km	MΩ.Km	V	M
絞合導體 Stranded Conductor	0.12	7/0.15	0.45	0.5	1.5×3.00	1.7×2.4	158.0	0.018	1500	300
	0.2	12/0.15	0.60	0.6	1.80×3.60	2.1×4.2	92.3	0.017
	0.3	16/0.15	0.69	0.6	1.9×3.80	2.2×4.4	69.2	0.016
	0.4	23/0.15	0.83	0.6	2.1×4.20	2.4×4.8	48.2	0.014
